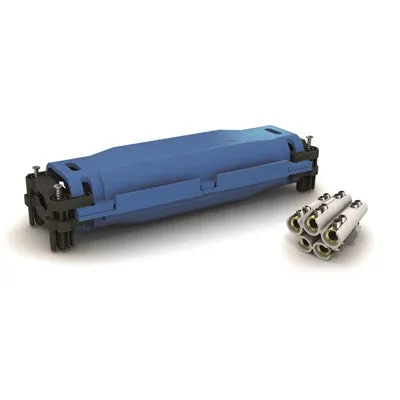

Wiska SH525W SHARK 69x180x40mm, IPX8 Pre-filled Gel Joint Suitable for up to 2.5-10mm 5 Core, Blue

Product Description

SHARK Classic Series gel insulated joints can be used to make straight connections on 0.6/1 kV single or multicore low voltage cables with up to five cores.
Thanks to the greater space available inside the joint, the versions without terminal blocks are suitable for straight connection of single-core cables, and for the connection and insulation of electronic boards and components.
The versions with terminal block allow straight connection with double insulation of cables with up to fve cores and are available upon request with tin-plated aluminium connectors for copper-copper, aluminium-aluminum, and copper-aluminium connections.

SHARK Pre-filled gel insulated straight joint. Includes retention clamp, earth braid and constant force roll springs. Perfect for steel wired armour cable.

Features

• Material: Polyamide
• Filling: Silicone
• Temp. range min: -20 °C
• Temp. range max: 90 °C
• Glow wire test: self-extinguishing
• Terminals/poles: 3 - 5 x 6 - 16 mm²
• Protection class: IPX8
• Voltage: 0.6 kV - 1 kV
• Ampere: 135
• Cable Size: (3 core) 2.5 - 16 mm (4 core) 2.5 - 16 mm (5 core) 2.5 - 10 mm
• LxBxH: 69x180x40 mm
